Unity Sanctuary
Bluebell Park, Philadelphia, Pa
Joe Narissi & Tim Figueroa
Fall 2024



The Unity Sanctuary was designed to promote connection and inclusivity while seamlessly integrating with its natural surroundings. We carefully navigated the balance between harmony with nature and potential disruption, prioritizing material research and structural clarity to ensure a respectful integration with the landscape. Through collaboration, my partner and I combined our strengths to enhance our understanding of building tectonics, detailing, and material integration. Refining the structural systems and connections proved to be one of the most challenging yet rewarding aspects of the project, allowing us to create a tangible response to how a sanctuary of this caliber could stand. This project deepened my appreciation for the intersection of concept, materiality, and structure, demonstrating that true cohesion in architecture comes from thoughtfully weaving together all its elements.

​

​

My Contributions: Sketches, Building Drawings (Plans, Elevations, Sections, etc), Photographs, GWP Analysis, MEP Development, Details and Renders.






​

Final Site Plan.png
Tim and Joe combined full site inventory key_edited.png

Site Annual Shadow Analysis

Data visualized by Joe Narissi

Project Concepts

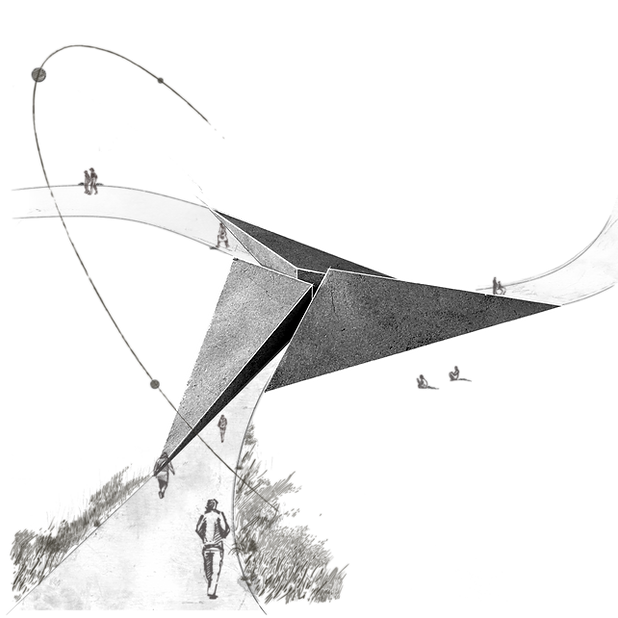

Simplicity

Complexity

Convergence

Concept Sketches

Scannable Document on Sep 6, 2024 at 8_11_20 PM-part-18.png
Scannable Document on Sep 6, 2024 at 8_11_20 PM-part-19.png
Scannable Document on Sep 6, 2024 at 8_11_20 PM-part-5.png
Design Sketch transparent_edited.png
Scannable Document on Sep 6, 2024 at 8_11_20 PM-part-11.png

First Iteration


Building Model made by Joeseph Narisi

Second Iteration


Building Model made by Joeseph Narisi

Final Iteration

Ground Fl

Final MEP Fl Plan.png

MEP Plan

D8 Site Model Render.jpg

Model designed made by Joeseph Narisi

D8 Section Render.jpg

Model designed made by Joeseph Narisi

Initial Structural Exploration

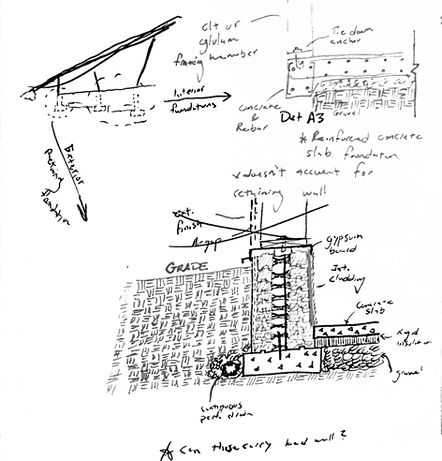

Initial Exterior Wall Footing Detail.png
INITIAL DETAIL WALL SECTION SKETCH 2.png

Roof to Skylight Section

Green Roof to Clad Roof Detail


South Elevation

Support Space Gathering Space

Counterfort Retaining Wall Detail

Green Roof Skylight Detail

Classroom

D8 side retaining wall.png

Support Space Side Retaining Wall Detail

Structural Axon Monochrome and transparent.png

Building axon drawn by Joseph Narisi

Roof Panels

Mass Timber Framing

Underfloor MEP system

Cast-in-Place Concrete Retaining Walls

Finish Floor, Plenum and Foundation Slab


Lifecycle Analysis

First Iteration Material Lifecycle results

First Pass Material GWP.png

First Iteration Material GWP Results

Second Iteration Lifecycle.png

Second Iteration Material Lifecycle results

Second Pass Material GWP.png

Second Iteration Material GWP Results

Third Iteration Lifecycle.png

Third Iteration Material Lifecycle results

Third Pass Material GWP.png

Third Iteration Material GWP Results

Final Form
Daylighting Studies

Final Mean Illuminance analysis_edited.png
Final Mean Illuminance analysis_edited.png
Final Overlit analysis_edited.png
Final Overlit analysis_edited.png

Mean Illuminance Study

Overlit Areas Study

Final Autonomous Daylighting Analysis_edited.png
Final Autonomous Daylighting Analysis_edited.png

Autonomous Daylighting Study

Daylighting Study by Joeseph Narisi


Final Boards

d8 linkedin board_Page_3.png
Final Ext Render 3.png
